Keystroke Dynamics Recognition: Theory, Methods and Application

Keystroke dynamics recognition is a biometric modality that focuses on typing patterns of a person to confirm their authenticity

Definition & Overview

In liveness taxonomy, keystroke dynamics recognition (KDR) is based on identifying tempo, rhythms and manner of keyboard typing that is intrinsic to a specific individual. The concept can be traced back to the 19th century when telegraphy first appeared. It was relatively easy to recognize an operator by the manner they applied the Morse code. It is known that fine motor skills directly correlate with a person’s cognitive abilities and temperament — elements that serve as a personality foundation.

The Culture of Ham Radio mentions that "The way a person sends code is almost as distinctive as his voice". These observations allowed distinguishing friendly operators from the enemy during the WWII with a technique dubbed The Fist of the Sender.

Keystroke dynamics can be traced back to the early days of electric telegraphy
Origin of the keystroke dynamics can be traced back to the early days of electric telegraphy

Keystroke dynamics can be used as an additional security layer along with biometrics, knowledge and token types of authentication. This method is generally seen as passive and unintrusive: it does the analysis while a person enters a password. At the same time, experts voice a concern that it can make authentication costlier and slower.

Areas of Application

There are 3 major types of authentication:

  • Knowledge. Something a person knows: password, PIN, etc.
  • Token. A specific item that only a person in question owns: mobile phone, SIM-card, passport, etc.
  • Biometrics. A parameter an accessor has from birth: fingerprints, blood type, voice, iris pattern.

Biometrics also have a subtype, which focuses on a person’s behavior: logging in/out schedule, online surfing/shopping habits, frequency of search requests, and so on. Keystroke dynamics are a part of behavioral biometrics as every individual tends to have a unique typing manner.

Authentication process of keystroke dynamics which uses a person's typing manner for identification
Enrollment and authentication of the keystroke dynamics

As a result, the method can enhance a static authentication modality, which solely depends on a reusable authenticator: password, secret phrase or a PIN. Its main vulnerability is that such an authenticator can be stolen through sniffing, eavesdropping, screenshotting or IP spoofing. Besides, KDR is seen as a promising solution for monitoring shared computer sessions as it can lock sensitive data to unauthorized users, raise an alarm in case of abnormal behavior or even detect a user’s gender.

Advantages & Disadvantages of Keystroke Dynamics Recognition

KDR has a number of pros and cons regarding its accuracy and implementation.

Advantages

It offers the following benefits:

  • Uniqueness. As typing has a unique character in each person’s case, it can be measured with a surgical precision with a specific algorithm.
  • Minimal invasiveness. The method does not collect highly private biometric or personal data and works in a background mode.
  • Enhanced password security. KDR can increase the lifespan of a password and increase its overall efficacy.
  • Resistance to hacking. Replicating KDR is extremely difficult. It makes typical hacking attacks — like brute force — useless since the system offers a limited number of retries. Hence, biometric spoofing attempts will be pointless.

Besides, KDR does not require dedicated gear to function, unlike many biometric solutions.

Disadvantages

The major drawbacks of the method are:

  • Increased wait time. While working in the backend, KDR can toll the system with an extra wait time. Especially if it is not cloud-supported and runs on a decrepit device.
  • Accuracy issues. Typing patterns may vary depending on fatigue, distractions, medical intoxication, user’s mood shifts, and other factors.
  • Decreased permanence. As a gained skill, typing can change over the time, which requires changing the keystroke profile.

Accuracy and permanence issues are the central problems of this approach.

Factors that can impact performance of keystroke dynamic recognition
Factors that can impact performance of KDR

Basics of Keystroke Dynamics Recognition

Here is a brief overview of how a KDR system works according to the facial Antispoofing Wiki.

Capturing Keystroke Information

Basically, this is an enrollment stage, during which a user is prompted to type a text, on which their authentication profile will be formed. All subsequent access attempts will be matched against the given sample until it is changed.

General Structure of Keystroke Dynamics Recognition System

Typically, KDR architecture includes the following elements:

  • Data acquisition. Typing samples are acquired via an input device: computer keyboard, numpad, touchscreen, etc.
  • Feature extraction. With steps like feature selection and outlier detection, a reference pattern will be created.
  • Classification. It includes data categorization and discrimination.
  • Decision. At this stage reference data is compared against the input. To increase authentication accuracy, some fusion methods can be used.

Additionally, the architecture includes retraining in case a new reference template should be created.

KDR can be potentially implemented in banking and real pinpads
KDR can be potentially implemented in banking and real pinpads

The Main Methods of Keystroke Dynamics Recognition

Methods used in KDR include:

  • Statistical approach. It includes standard elements such as 𝑘-nearest neighbor, statistical 𝑡-test, median deviation, etc.
  • Probabilistic modeling. Based on a notion that keystroke feature vectors are predefined by Gaussian distribution, it employs such techniques as Hidden Markov Model, Gaussian Density Function, and others.
  • Cluster analysis. This idea suggests gathering similar characteristics pattern vectors to form a consistent, homogeneous cluster. (E.g. fuzzy C-means.)
  • Distance measure. This method estimates similarity or dissimilarity with a reference template using Euclidean distance, and other techniques.

Machine learning and Deep Neural Networks (DNNs) are also employed. For their training keystrokes of both the legitimate claimant and potential intruder can be used. Other methods include evolutionary computation, decision tree, fuzzy logic, Support Vector Machine, etc.

A Decision tree scheme used in keystroke dynamic recognition for anti-spoofing
Decision tree scheme

User Verification, Identification & Recognition

Verification framework in KDR consists of the following components:

  • Enrollment. A User’s model and reference template are created from the keystroke samples.
  • Outliers detection. Presence of outliers impacts performance of the classifiers during matching/verification.
  • Preprocessing. This step implies data normalization (with a normalization function) before further analysis.
  • Feature selection. Useless and irrelevant features are removed to increase operational speed.
  • Model computation. A model is computed to ensure user verification in the future. It can be done with learning clusters using k-mean, calculating standard deviation of enrolled samples and the mean vector, etc.

(Model computation can be based on both data mining and statistics.)

Evaluation of Keystroke Dynamics Recognition Systems

A KDR system is attested using three factors:

  • Performance. It considers the biometrics standards estimating Failure-To-Enroll rate, Equal Error Rate, and other metrics.
  • Satisfaction. It measures acceptance of the KDR approach among the users, as well as its ease-of-use and, perchance, commercial performance.
  • Security. This aspect focuses on Presentation Attack (PA) resistance potential, false Acceptance Rate (FAR), and other nuances.

Note: Performance and security metrics are taken from the ISO standardization (such as ISO/IEC 19795-1.)

Typical vulnerabilities at different stages of an average biometric system
Typical vulnerabilities of an average biometric system

The influence of Emotion on Keyboard Typing

The emotional state of an individual is seen to have an impact on their keystroke dynamics, contributing to liveness detection. During an experiment, volunteers were exposed to a sound that could potentially alter their emotional state while typing, such as bird chirping, from the IADS-2 dataset. A study revealed that emotional state affects keystroke duration and latency, while typing accuracy mostly stays the same. (Possibly due to the involvement of muscle memory).

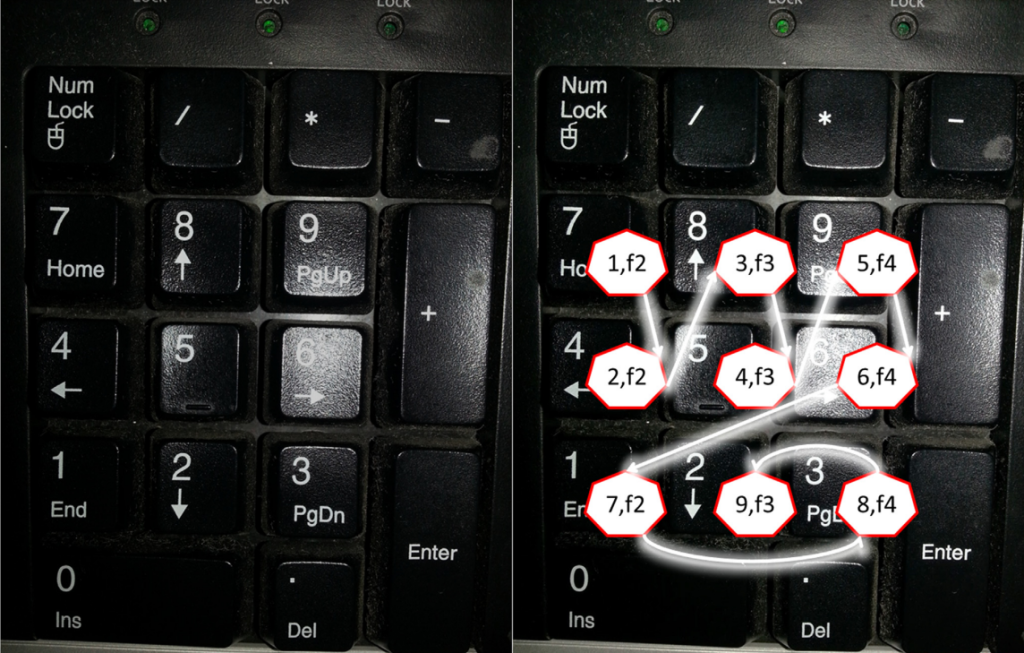

Keystroke dynamics of when the number 748596132 is typed on a keyboard
The numpad and the ‘748596132’ figure combination used in the experiment

Keystroke Biometrics Ongoing Competition

Keystroke Biometrics Ongoing Competition (KBOC), organized by IEEE and ATVS, is a challenge, which strives to create a baseline that can ensure accurate keystroke dynamics recognition. The contest has a public keystroke dataset with 7,600 sequences recorded from 300 unique individuals.

Keystroke Biometrics Ongoing Competition allows people and companies to take part and enhance keystroke recognition accuracy
KBOC banner

Keystroke Dynamics in Gender Recognition

It is considered possible to detect genders based on the keystroke dynamics data. As another experiment showed, male typing features a 373.04 ms latency and a 135.26 ms deviation, while female typing has 375.71 ms latency and 116.86 ms deviation.

Keystroke Dynamics Fatigue Recognition

A test, during which volunteers were challenged to type in a password repeatedly, showed that it is possible to detect fatigue levels of a user. An especially accurate result was produced by the key release-to-release data with a 91% accuracy rate. The technique can be used for creating more favorable work environments, among all else.

Authentication Using a Combination of Keystroke & Mouse Biometrics

Computer mouse dynamics can complement KDR as their monitoring and measuring is based on similar principles. To create an authentication template, a user is prompted to perform a fixed task with a mouse. Later, by analyzing mouse dynamics, button clicks, and other actions, a system can tell an imposter from a bona fide user.

Behavioral Biometric Authentication on Smartphones

A Behavioral Biometric Authentication method is proposed for smartphone gestures as well, which consist of strokes — a sequence of consecutive timed points. The method analyzes a user’s finger movement on the screen by extracting a group of features: temporal, geometric, spatial, dynamic, etc. In essence, this method has similar mechanics, advantages and drawbacks as the KDR approach.

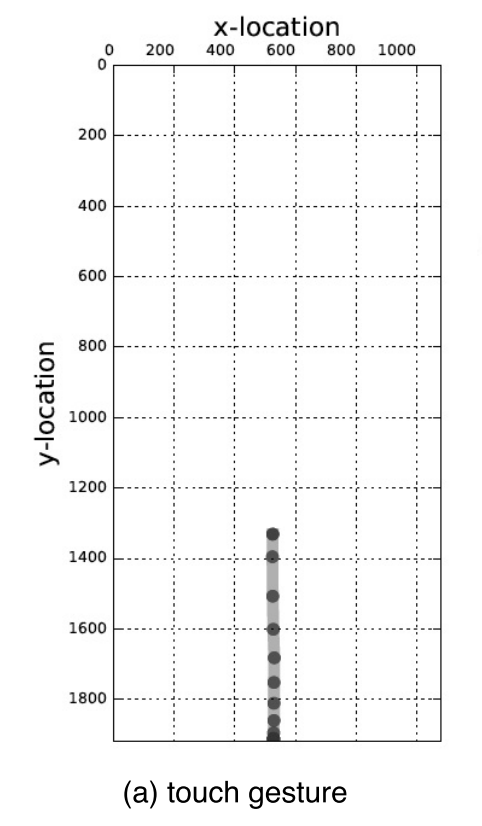

Frequency of touch gestures on a smartphone screen recorded for keystroke recognition
Touch gestures on a smartphone screen

FAQ

Keystroke dynamics recognition definition

Keystroke dynamics recognition can identify a person by the way they type on a keyboard.

Keystroke dynamics recognition (KDR) is a biometric modality that focuses on analyzing an individual’s manner of keyboard typing. The way a person types on a computer keyboard proves to be unique in terms of speed, pauses, mistypes and errors, frequently used key combinations, and so on.

Identification, verification and matching are possible due to a biometric template that is created when a user types in the random words/symbols prompted by the system. However, it is assumed that KDR may be prone to misidentification due to behavioral instability: keyboard typing can improve with practice or decline due to simple tiredness.

Is it possible to identify a person with keystroke dynamics?

Keystroke identification has a rich history lasting almost two hundred years.

Keystroke dynamics recognition (KDR) has been known since the 19th century: telegraphy operators could identify each other remotely by the manner of electric key typing (keystroke). Some authors even compared its uniqueness to the human voice.

As a biometric modality, it focuses on the behavioral traits of a person: typing speed, the amount of blunders, preferred key combinations or hot keys, etc. A similar method was used during WWII to identify enemy operators disguising themselves as friendlies.

At the same time, KDR suffered from lower permanence as typing dynamics may change due to fatigue and other factors.

How does keystroke dynamics recognition work?

Keystroke dynamics recognition analyzes unique behavioral traits intrinsic to keyboard typing.

Keystroke dynamics recognition or KDR focuses on how a particular person types on a keyboard. It analyzes such attributes as tempo, time intervals, frequent key combinations, and other nuances inherent to how a person types.

Uniqueness of the method has been known since the era of electric telegraphy. During WWII it was used to identify hostile impostors who tried to spread disinformation under the guise of friendly operators.

To employ this method, a person is prompted to type a text. After that an authentication profile is created by the system — it will perform biometric verification every time a subject enters a password.

What is keystroke biometrics?

Keystroke biometrics is a subset of biometric science, which focuses on keyboard typing dynamics.

Keystroke biometrics are used to analyze how an individual types on a keyboard. This modality can be used as an additional protection layer as it’s cheap and highly unintrusive.

The system creates an authentication template by examining how a user types a sample text. During the procedure, it will register such characteristics as tempo, cadence, and so on.

As a result, it can identify a user’s keystroke manner with a surgical precision — spoofing such a system would be useless. At the same time, it can be prone to a higher False Reject Rate (FRR) as typing can change due to physical fatigue, intoxication, emotional state, etc.

References

  1. Relations between fine motor skills and intelligence in typically developing children and children with attention deficit hyperactivity disorder
  2. The Culture of Ham Radio
  3. The physiology of keystroke dynamics
  4. The Telegraph Operator
  5. A Survey of Keystroke Dynamics Biometrics
  6. Enrollment and authentication of the keystroke dynamics
  7. KDR can be potentially implemented in banking and real pinpads
  8. Fuzzy C-Means Clustering
  9. Evolutionary computation
  10. Decision Tree and Random Forest Algorithms: Decision Drivers
  11. Fuzzy logic
  12. Support Vector Machine
  13. Archive ouverte HAL
  14. ISO/IEC 19795-1:2021 Information technology — Biometric performance testing and reporting — Part 1: Principles and framework
  15. The Influence of Emotion on Keyboard Typing: An Experimental Study Using Auditory Stimuli
  16. Affective auditory stimuli: adaptation of the International Affective Digitized Sounds (IADS-2) for European Portuguese
  17. Keystroke Biometrics Ongoing Competition (KBOC)
  18. Database & Evaluation
  19. Keystroke Dynamics Features for Gender Recognition
  20. Analysis of Keystroke Dynamics for Fatigue Recognition
  21. A study on Continuous Authentication using a combination of Keystroke and Mouse Biometrics
  22. A Survey on Behavioral Biometric Authentication on Smartphones
